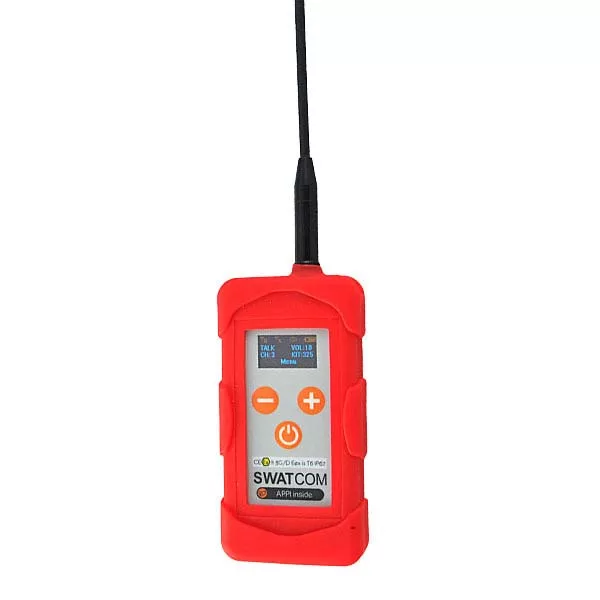

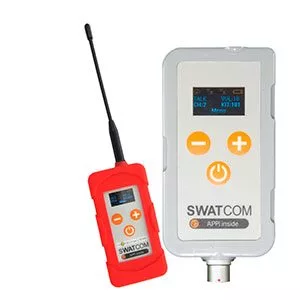

The SWATCOM DX (SCDX-ATEX) is an ATEX approved, hands-free, full-duplex, lightweight, compact radio communication system. Without base or relay, on a coded network, this is the simplest mobile voicecom which works in a multitude of industry sectors. Users have great freedom to work and communicate in a variety of environments, therefore increasing personal safety and productivity.
The SWATCOM DX is a wireless “intercom” for professionals, for use in many demanding situations. It’s small, compact rugged design, and ease of use also makes it the product suited to sports professionals and enthusiasts.
SWATCOM DX allows a natural conversation between users despite physical obstacles (walls, floors, etc.), even when wearing protective equipment including SCBA (self-contained breathing apparatus).
The SWATCOM DX unit attaches to the headset in similar way to a Press-to-Talk (PTT) switch, but does not have to be operated in order for the user to be heard (i.e. full-duplex), the handsets themselves do not operate as a walkie-talkie.
Three users can be in a full-duplex conference with an infinite number of users that can also listen into the dialogue. The digital coded wireless network is deployed within seconds, on a license-free radio band allowing the use of SWATCOM DX practically everywhere and independently.
- ATEX (IP67)
- High signal penetration (even through Faraday cage)
- Modular design for easy ‘Plug and Play’ operation
- Coded digital network
- Paging feature
- Range up to 1 km (1000m line of sight) with ½ wave antenna
- DSP (Digital Signal Processing)
- Can be deployed within seconds
- Internal and external antenna versions
- Hands-free self-synchronised system (Exclusive Patent)
- 3 user conference mode (Full-Duplex) or more (2+X mode)
- Additional users in ‘LISTEN’ mode
- Hands free or PTT options
- Wide range of headsets
- Up to 10 hour battery life
- Programmable Alarms – Man Down, Impact, Immobility
- Protective cover must be kept on to comply with ATEX Specifications
- EU Tariff code: 8517699000
|Dimensions||91x48x15mm (3.6’’ x 1.9’’x 0.6‘‘)|
|Weight||80 g (3 oz)|
|Radio Free bands||863–868.6/869-870 MHz|
|Number of channels||16 Channels / Emission power < 500 mW|
|Radio range||Up to 1 km (1000 metres) line of sight|
|Battery autonomy||up to 5h (standard) or 10h (“long life”)|
|Batteries||Lithium Polymer (Li-Poly 3.7v /rechargeable) 2h Charge time (wall socket)|
|Audio encyption||« enhanced » DMC – Modulation type : FM|
|Dust and Water protection:||IP66 (ATEX version : IP67).|
|CE Certification||SWATCOM DX ATEX Version : For use in Explosive zones « 2 » CE ATEX II 3G/D Eex is T6 IP67|
