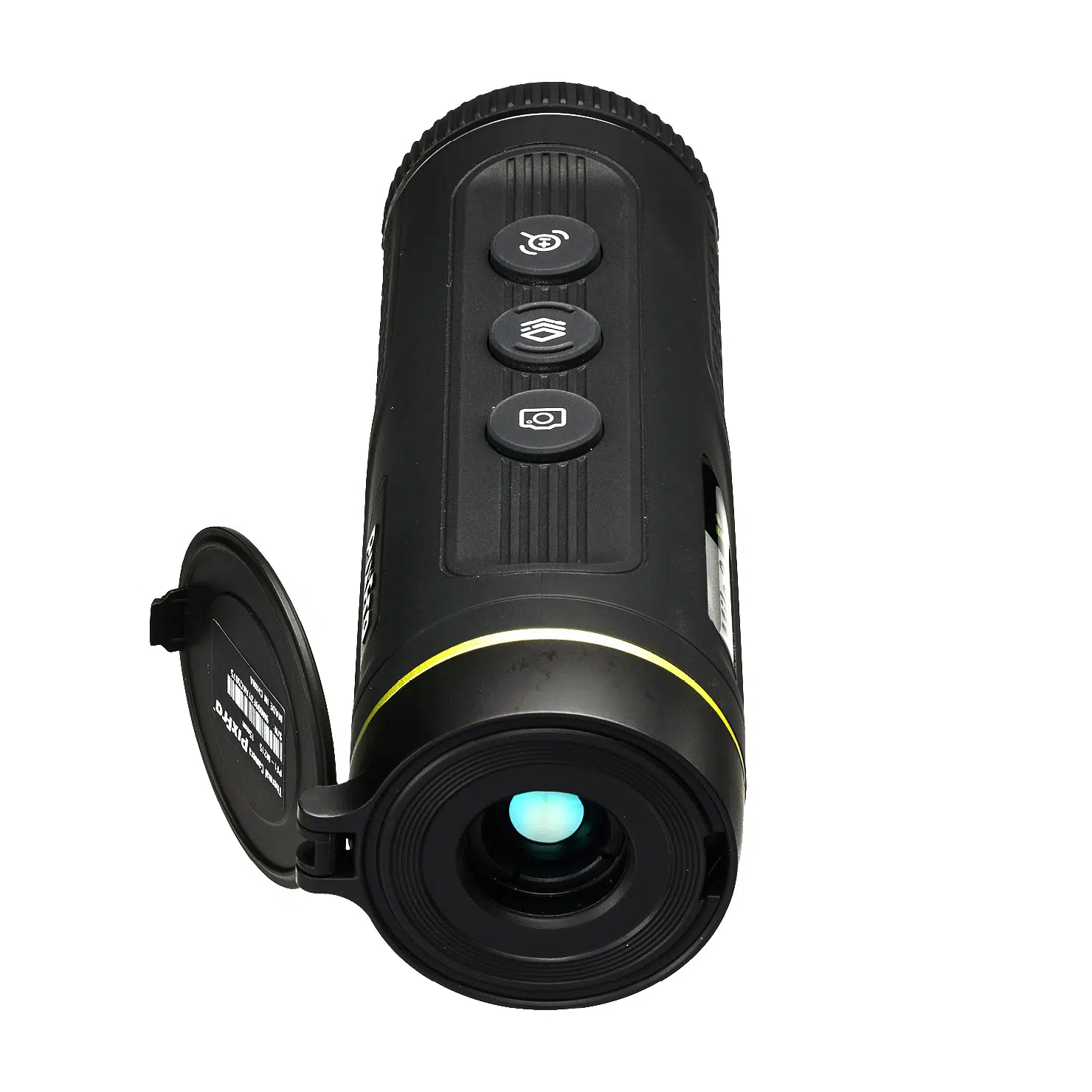

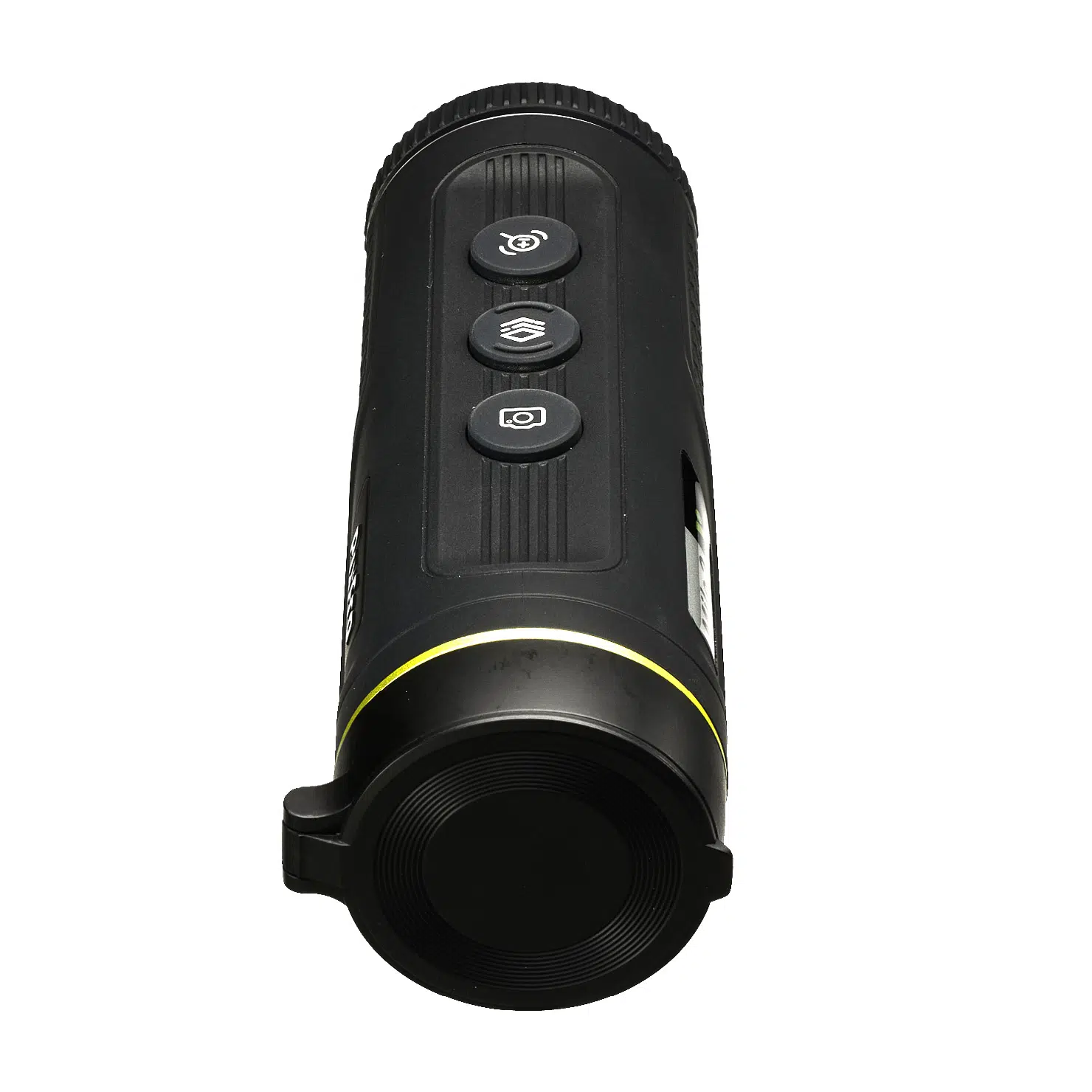

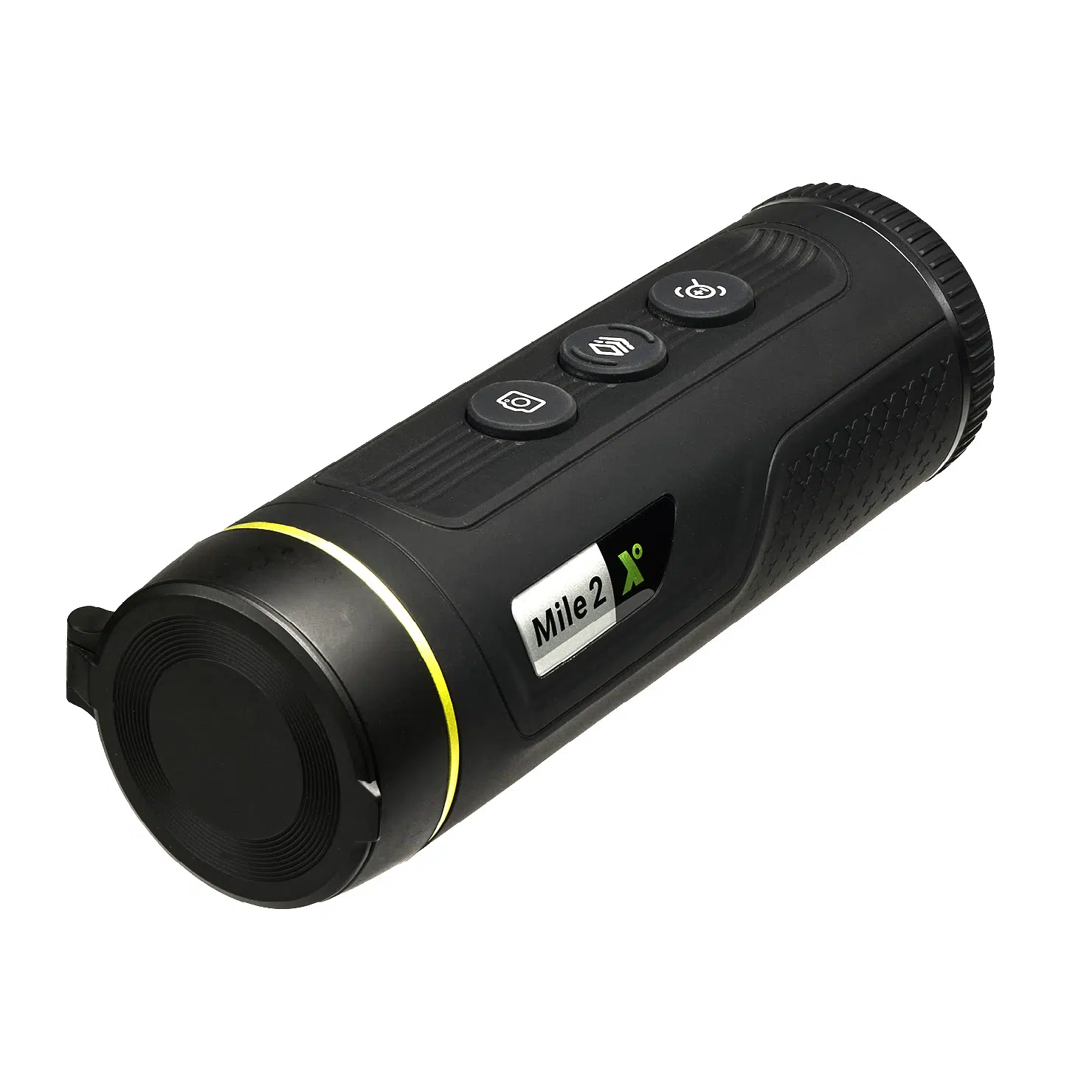

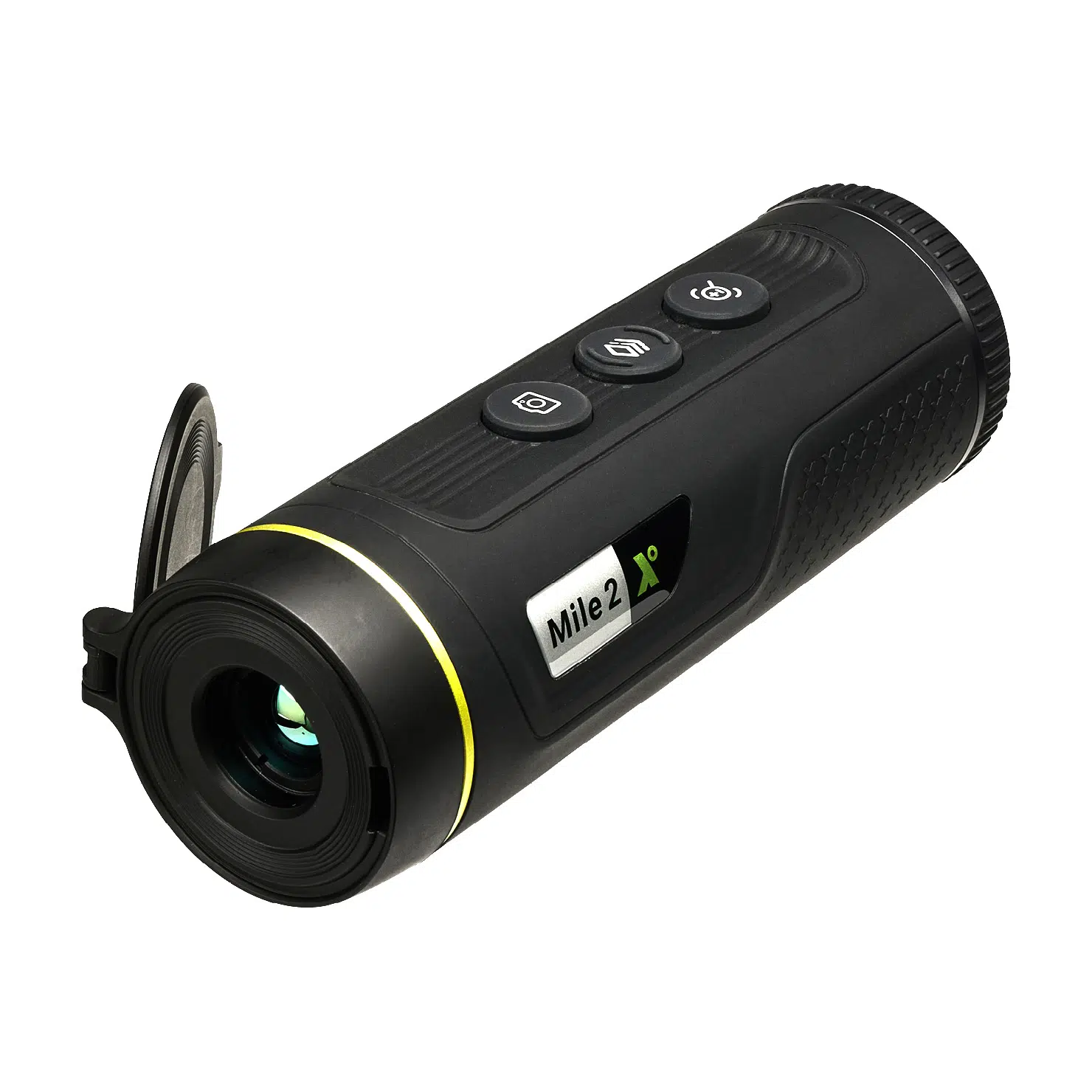

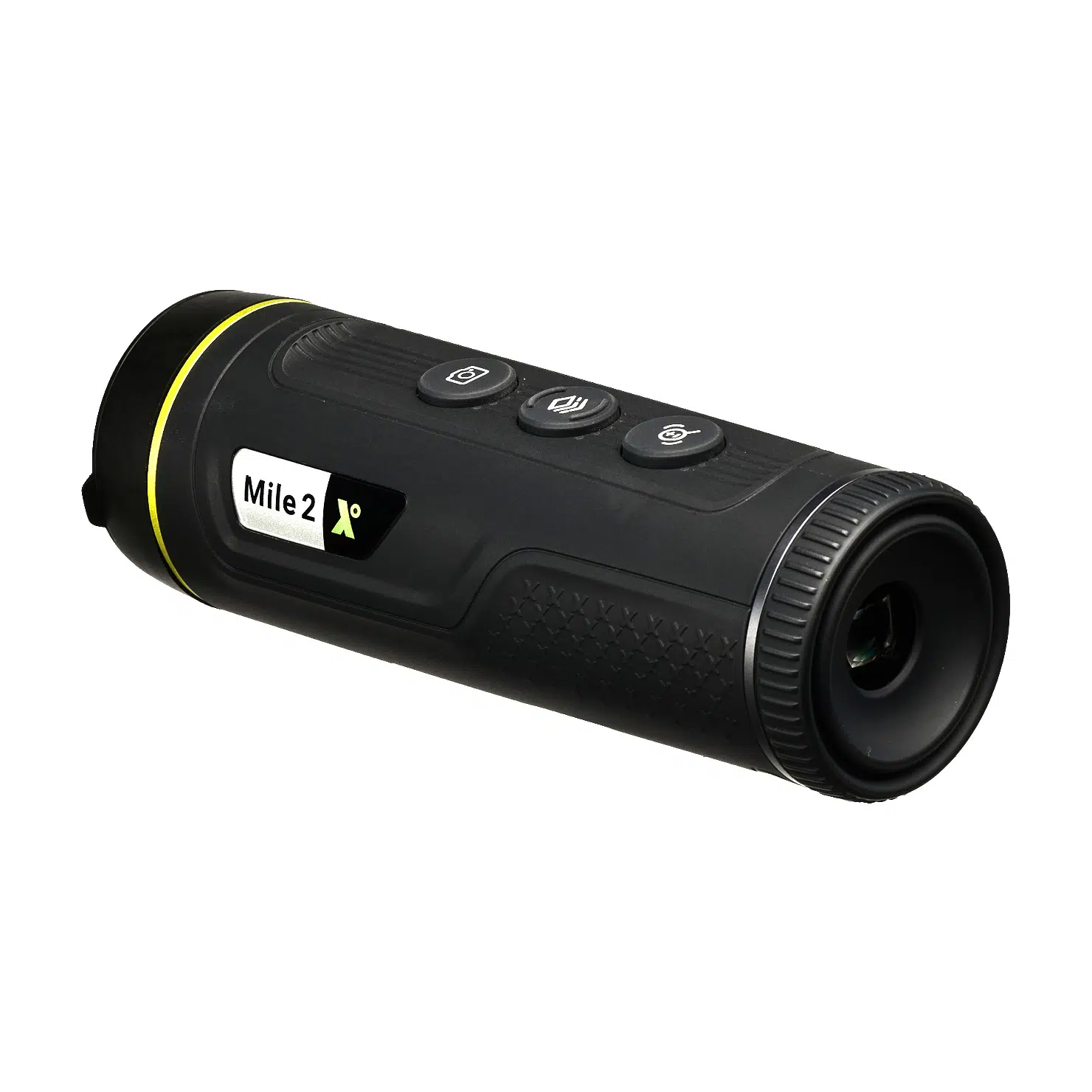

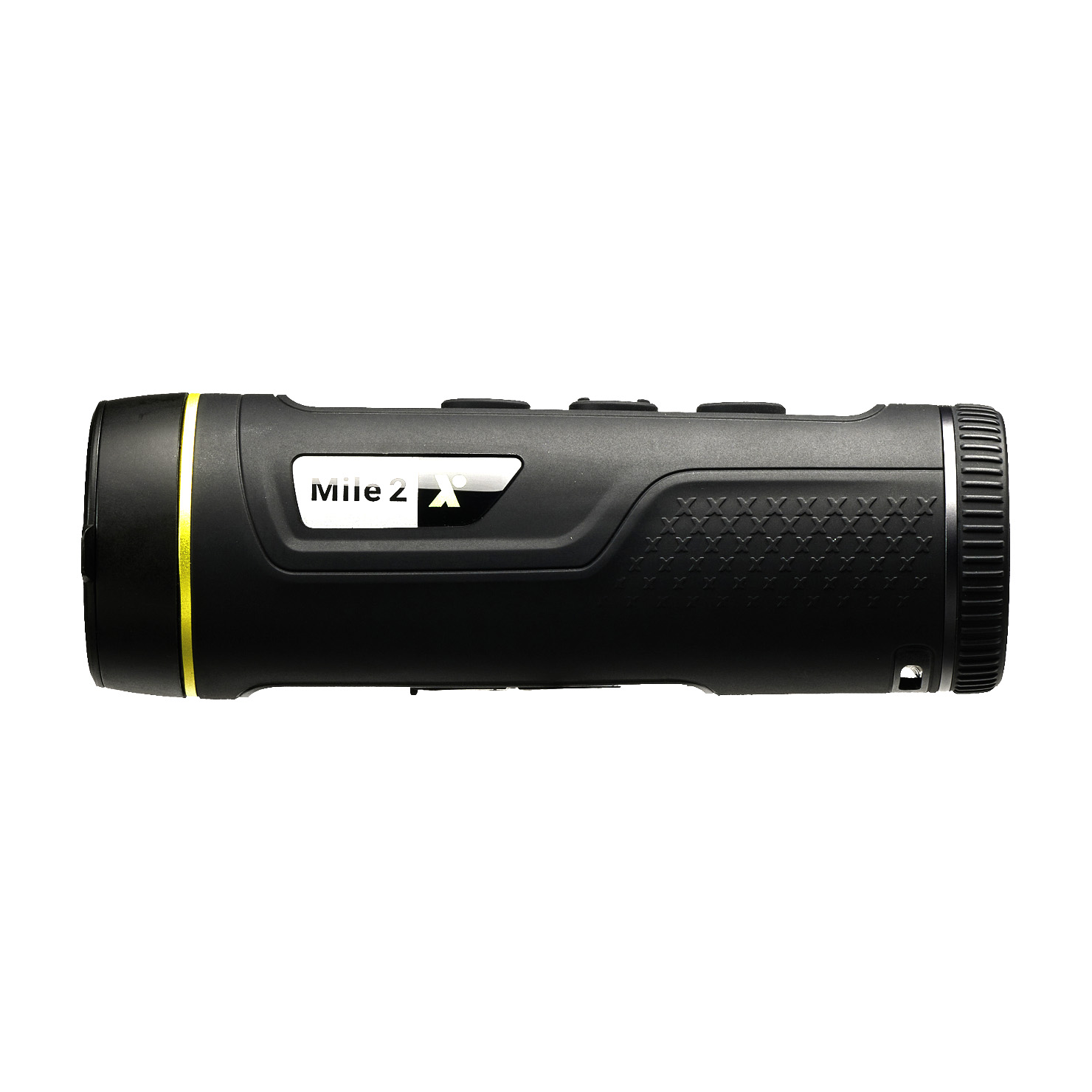

Pixfra Mile 2 M207 Thermal Imaging Monocular

£319.96 (Ex. VAT)

The Mile 2 M207 thermal imaging monocular packs a powerful punch for such a compact and lightweight device. With a 256ร—192, 12ฮผm, <35mK NETD thermal sensor, this monocular will reveal even the smallest heat signature at a range of up to 500m. A powerful 7mm f1.0 objective lens achieves an incredibly wide 24.0ยฐ FOV for greater observation opportunities over larger areas. Plus, with a strong Wi-Fi connection, this device can connect to up to four smart devices, allowing for effortless group sharing at a range of up to 40m.

SKU: TJ-PIX-PFI-M207 Categories: ,

Pristine Image Clarity

The Pixfra Mile 2 M207 thermal imaging monocular features a sensitive 256ร—192,12ฮผm, <35mK NETD thermal sensor and a powerful 7mm f1.0 objective lens, revealing even the smallest heat signature at a range of up to 350m.

Effortlessly revealing an animalโ€™s important anatomical features in vivid detail crystal-clear, this thermal imaging monocular will present stunning images onto a 0.32โ€ 90% DCI-P3 AMOLED display.

Wide Field of View

The Mile 2 M207โ€™s 7mm f1.0 objective lens achieves an incredibly wide 24.0ยฐ field of view, making it perfect for surveys and conservation effort, and enabling greater observation capabilities across larger areas. This wide FOV allows users to detect heat sources across great expanses without having to scan around, meaning they can inspect objects of interest without losing control over the rest of the observation area.

Compact & Slimline Design

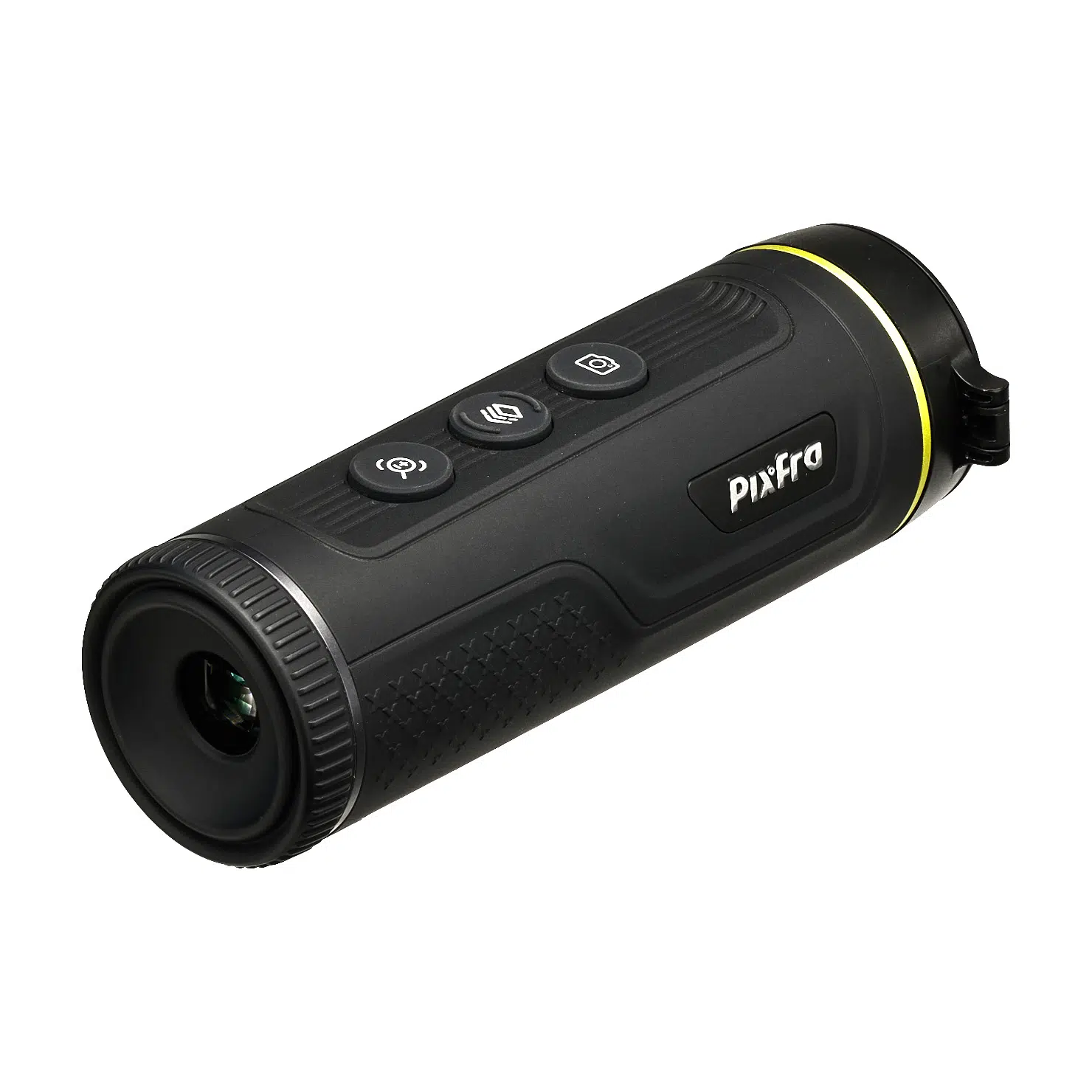

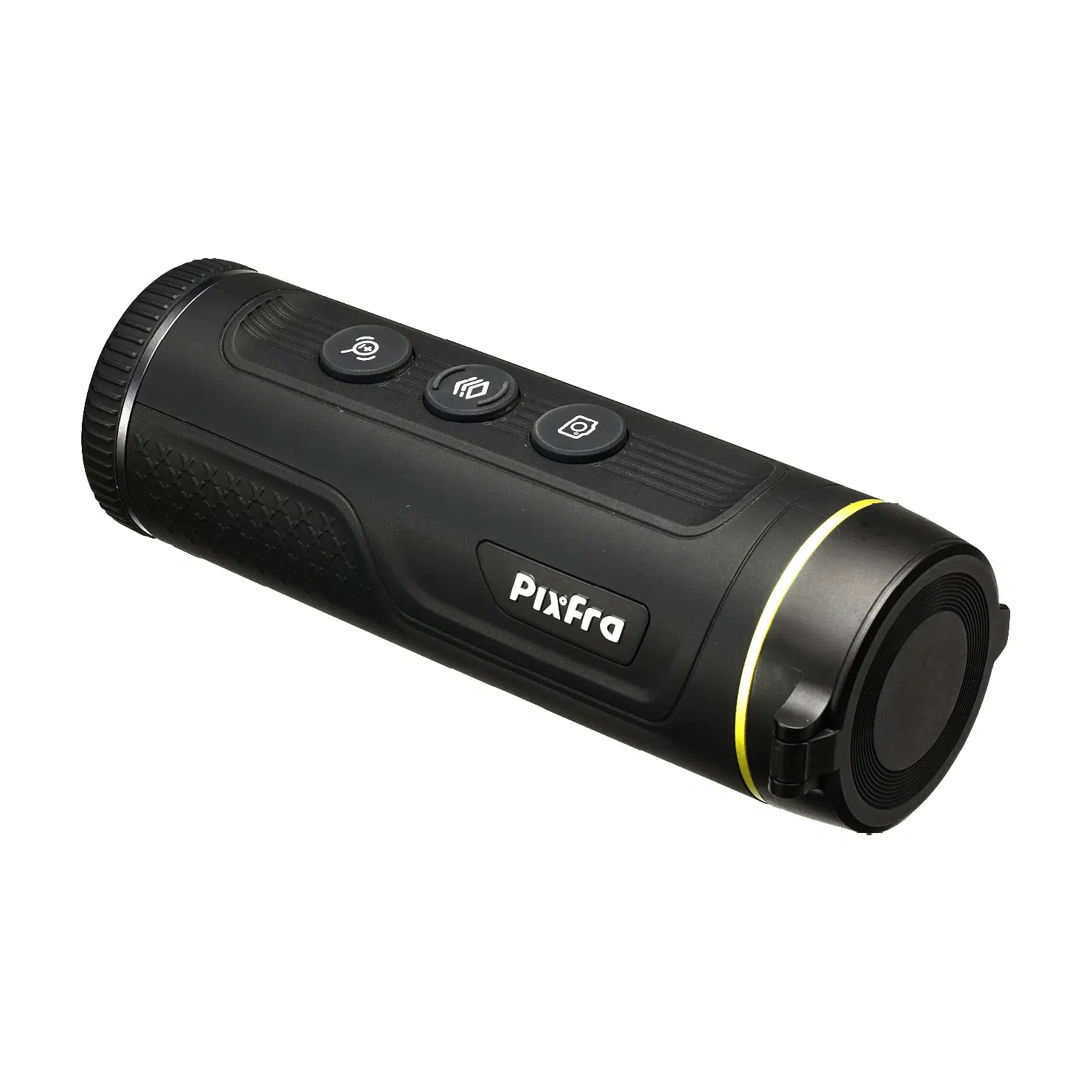

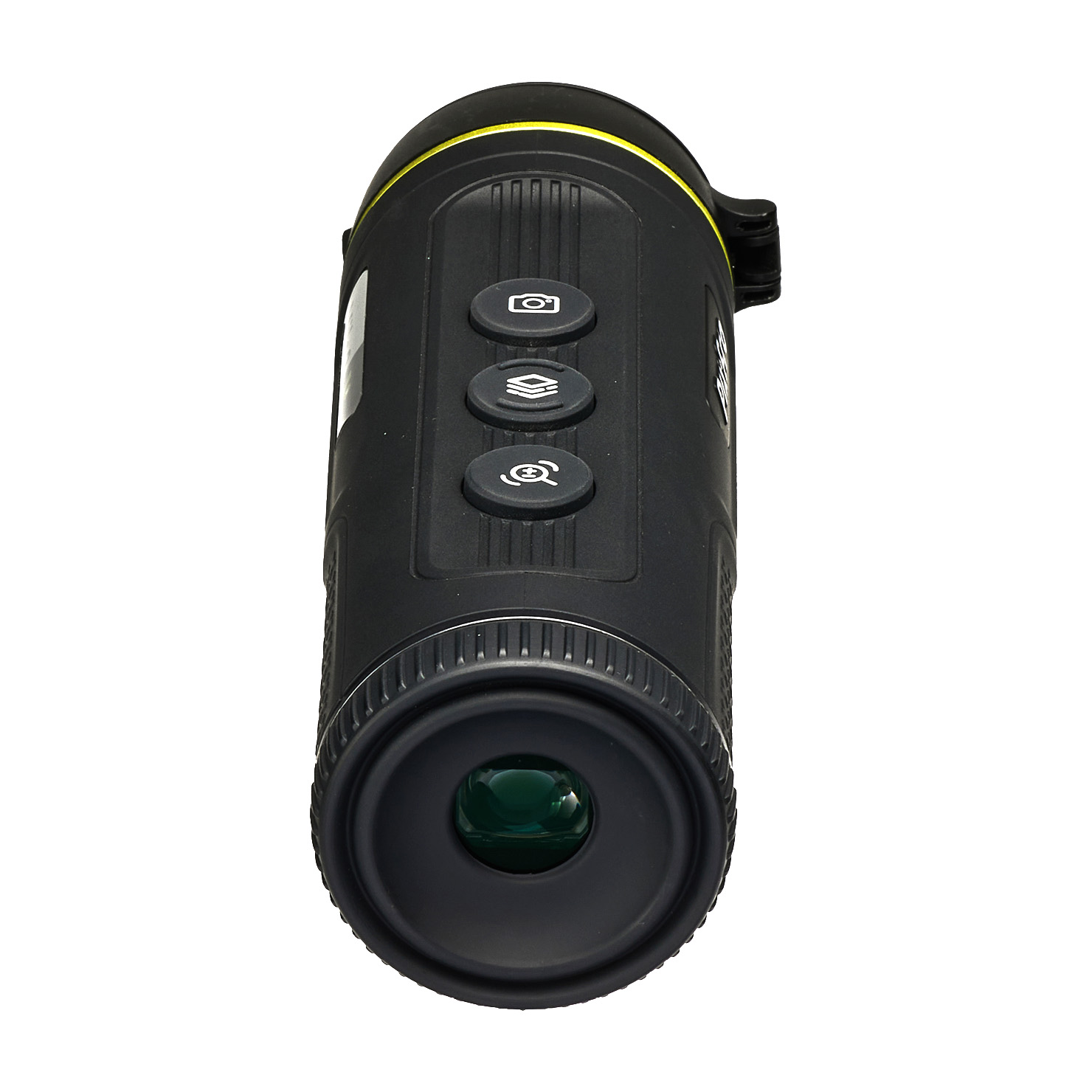

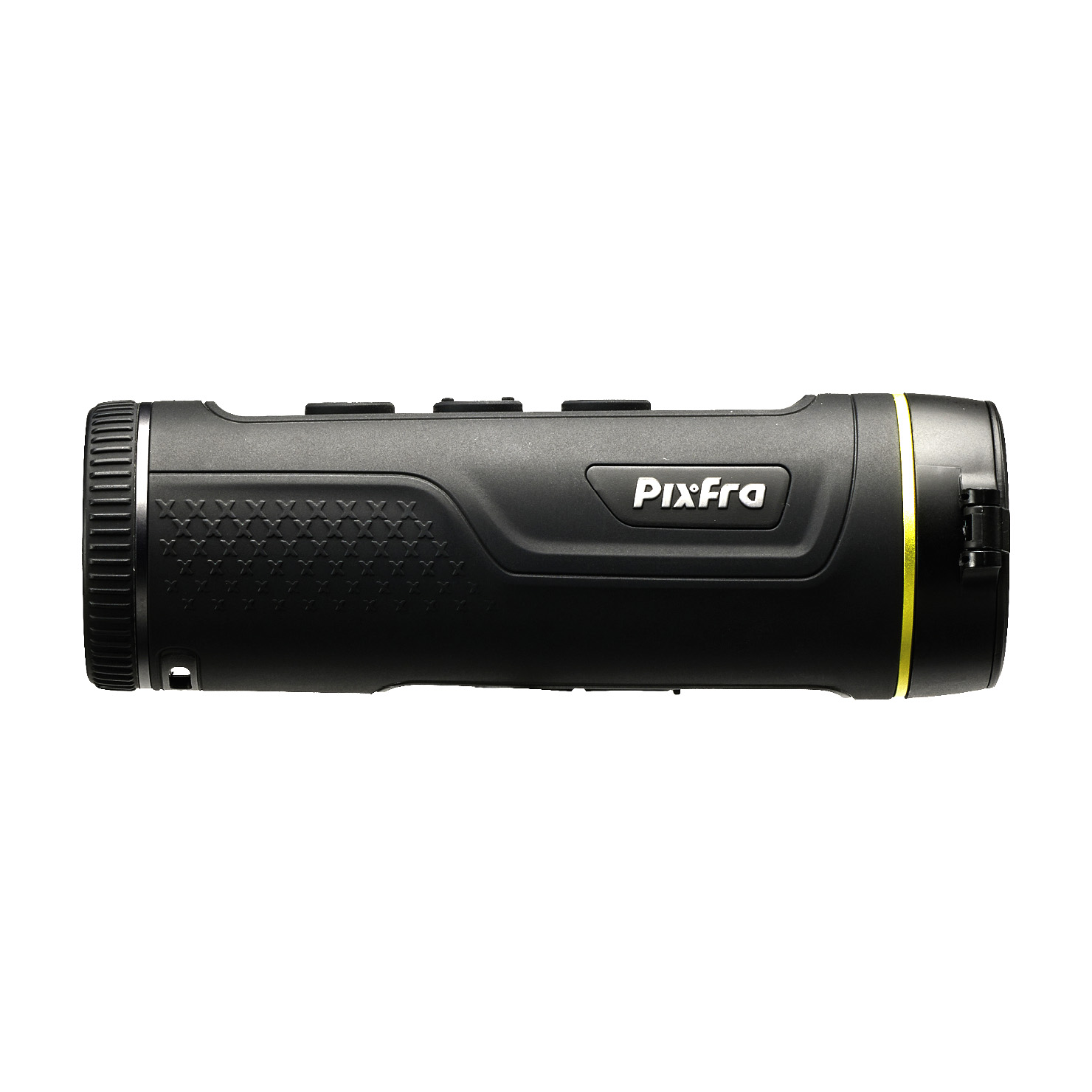

The Mile 2 features a completely new, slimline design which seamlessly incorporates the power button into the Pixfra logo on the side of the device โ€” reducing the number of buttons along the top of the monocular and offering simplified operation of digital functions.

This monocular remains extremely compact and much more lightweight than previous iterations in the Mile series, allowing for comfortable observation over long periods and easy transportation when not in use, fitting nicely into a pack or pocket.

Plus, with a range of convenient accessories, including a soft pouch, neck strap, and wrist strap, it will remain comfortable to use and carry.

Reliable in Any Weather

The Mile 2 M207 will ensure a powerful performance in any weather condition thanks to its IP67 rating, protecting the device against dust and water ingress. This certification also ensures the device remains unaffected in adverse weather conditions such as heavy rain and fog, and continues to work seamlessly in environments with โ‰ค95% humidity or extreme temperatures from โ€“30 to +55 ยฐC.

Long-Life Battery for Hours of Observation

A rechargeable long-life battery, provides up to 9.5 hours of effective power on a single charge (depending on temperature), keeping observations going through the day and well into the night.

Seamless Connectivity

With a stable and reliable Wi-Fi connection, the Mile 2 M207 will achieve seamless connectivity to a smartphone or tablet via the free Pixfra app for Android and iOS devices. This opens up greater observation capabilities, including group observations via live view on a connected mobile phone or tablet, with a range of up to 40m and the ability to connect to up to four different smart devices.

Features:

  • 256ร—192,12ฮผm, <35mK NETD thermal sensor
  • 7mm f1.0 objective lens
  • 350m detection range
  • Exceptionally wide 24.0ยฐ FOV
  • Built-in video recording
  • Built-in Wi-Fi
  • Seamless connectivity of up to 4 smart devicesยญยญ



IMPORTANT INFORMATION

Taking Thermal & Night Vision Outside of the UK.

Thermal imaging and night vision products are strictly controlled by ITAR regulations and are subject to UK Government Export Licensing Regulations. Dependent on specification, a licence may need to be obtained prior to the export, even temporarily (e.g. holiday), from the UK.

Additionally, some countries may be embargoed, and no thermal imagers or night vision devices can be taken or exported to them. It is the responsibility of the exporter, whether it be a company or individual, to ensure that such a licence is obtained.

Failure to comply is a criminal offence.

Click here for up-to-date information.

Videos



Specifications

Thermal Sensor 256ร—192, 12ฮผm, <35mK NETD
Objective Lens 7mm f1.0
Spectral Range 8 ฮผmโ€“14 ฮผm
Field of View H: 24.0ยฐ; V: 18.0ยฐ/H: 43.9 m; V: 32.9 m (@100 m)
Focus Control Fixed-focal
Close Focus Distance 1 m (3.28 ft)
Detection Range Up to 350 m
Magnification 1.1x
Frame Rate 50 Hz
Display 800 ร— 600, 0.32 inch OLED
Color Palettes 6 (white hot/black hot/iron red/alarm/emerald/amber)
Video Compression H.264
Diopter โ€“3 D to +1 D
Eye Relief 13 mm (0.51 inch)
Exit Pupil 5 mm (0.20 inch)
Digital Zoom 1ร—, 2ร—, 4ร—, 8ร—
Video Recording Yes
Still Image Capture Yes
Wi-Fi Hotspot Yes
Hot Spot Tracking Yes
Video Distance Measurement Yes
FFC Calibration Auto, Manual, External Correction
Standby Mode Yes
DPC (Defective Pixel Correction Yes
Storage Built-in 16GB
Battery Type Rechargeable Lithium Battery
Battery Life 9.5 hours (@ 25ยฐC)
Power Supply 5 VDC/2 A
Port USB Type-C
Overvoltage Protection Yes
Operating Temperature โ€“30 ยฐC to +55 ยฐC (โ€“22 ยฐF to +131 ยฐF)
Operating Humidity โ‰ค95%
Protection Grade IP67
Packaging Dimensions 180.0 mm ร— 123.0 mm ร— 96.0 mm (7.09โ€ณ ร— 4.84โ€ณ ร— 3.78โ€ณ) (L ร— W ร— H)
Product Dimensions 149.0 mm ร— 56.6 mm ร— 50.3 mm (5.87โ€ณ ร— 2.23โ€ณ ร— 1.98โ€ณ) (L ร— W ร— H)
Gross Weight 760 g (1.68 lb)
Net Weight 270 g (0.60 lb)
