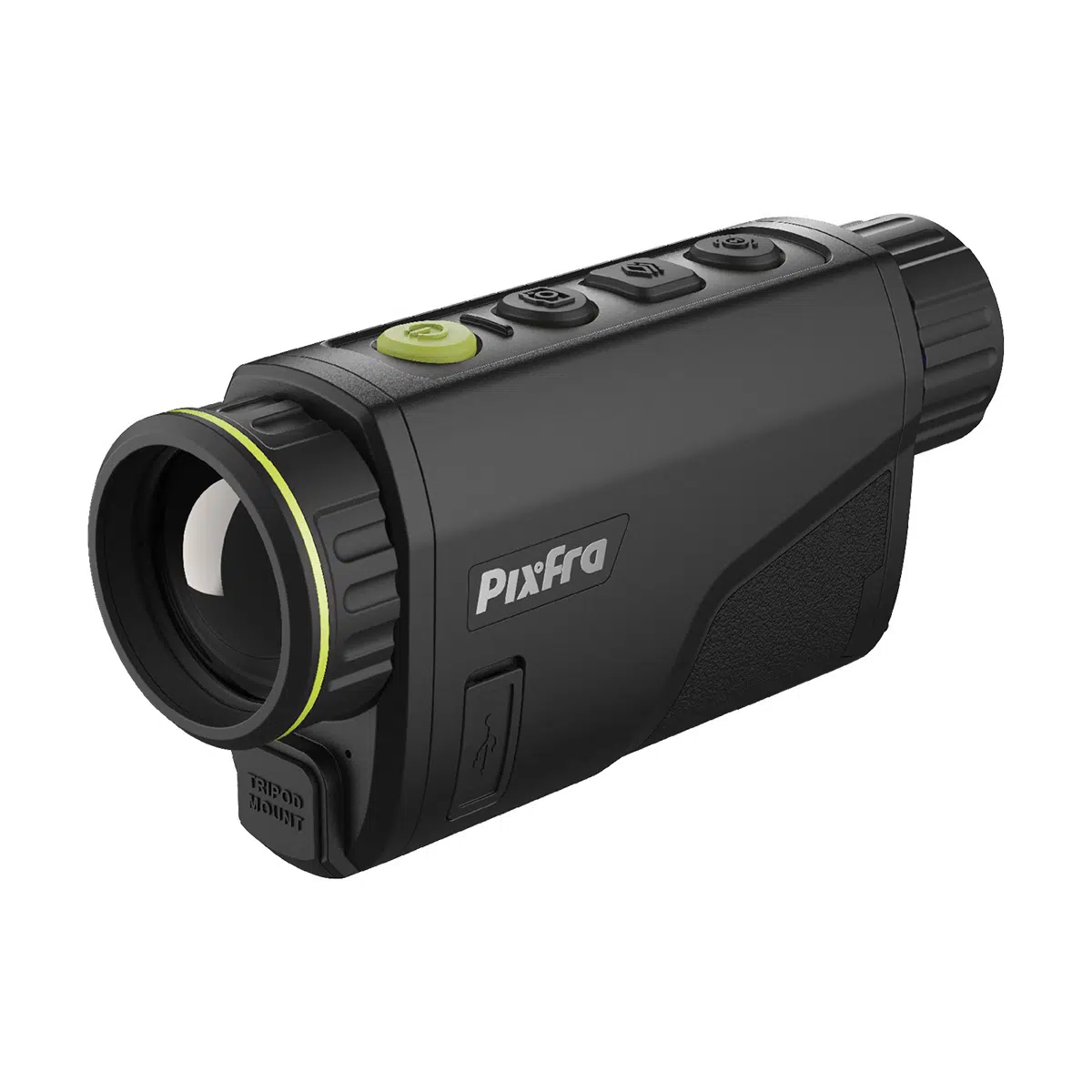

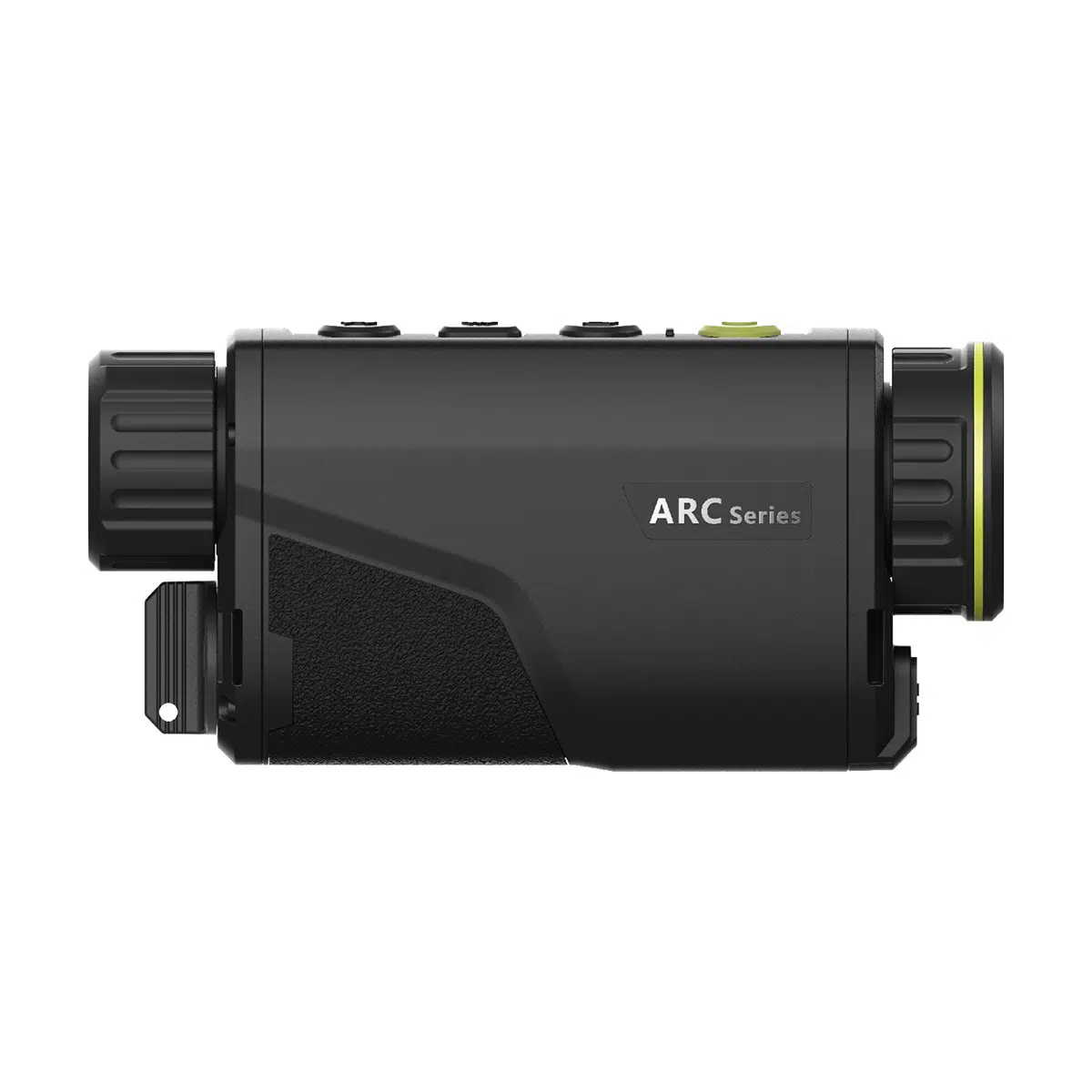

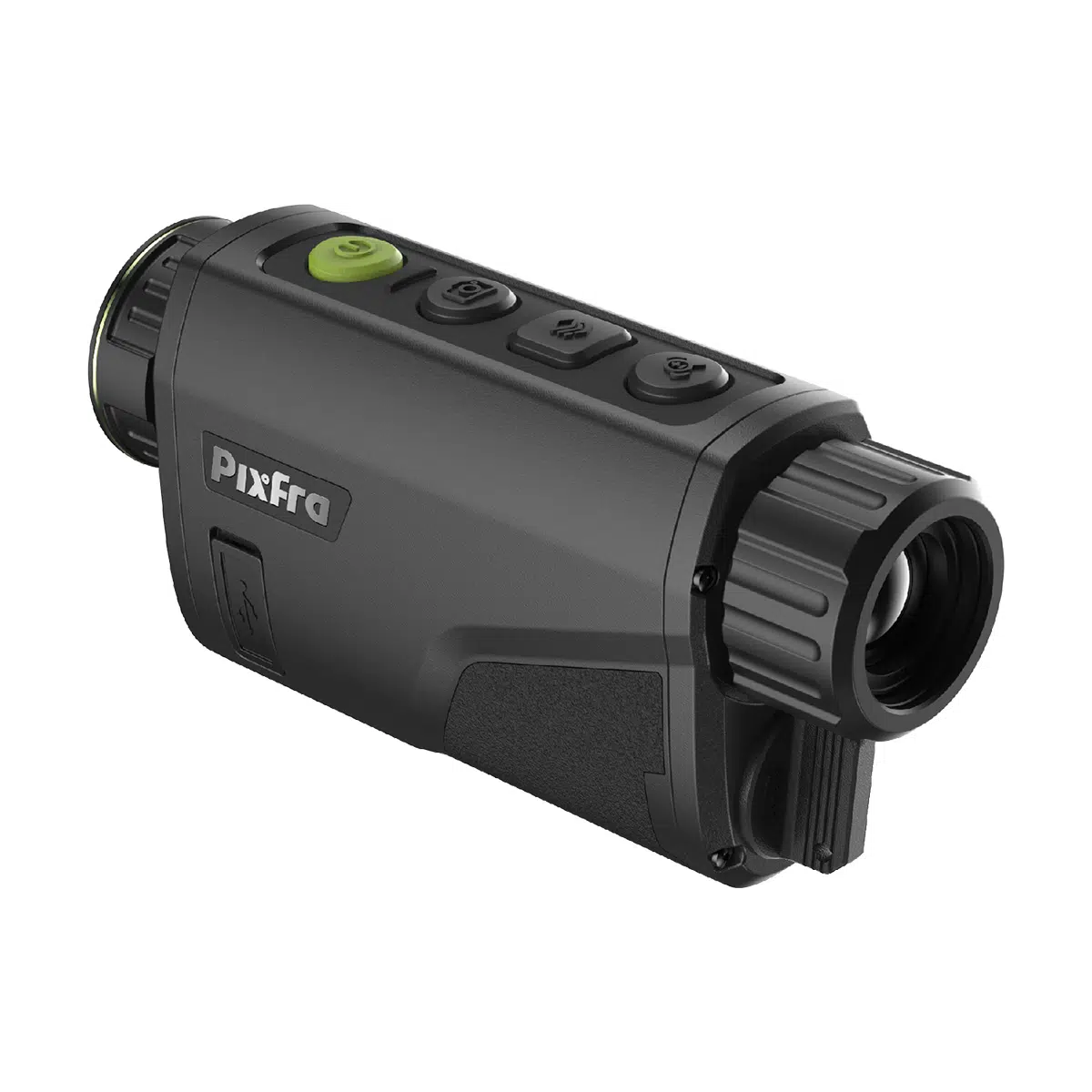

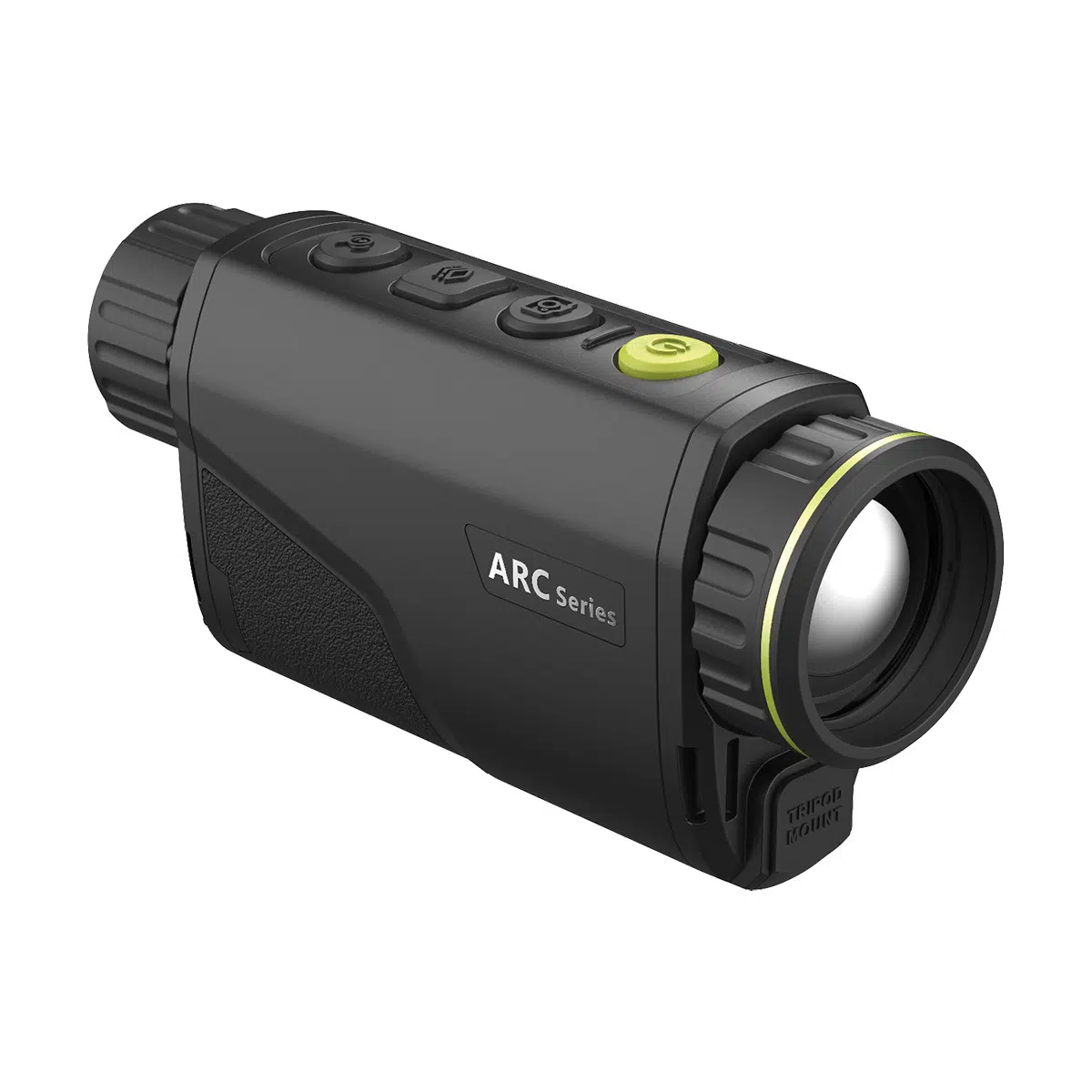

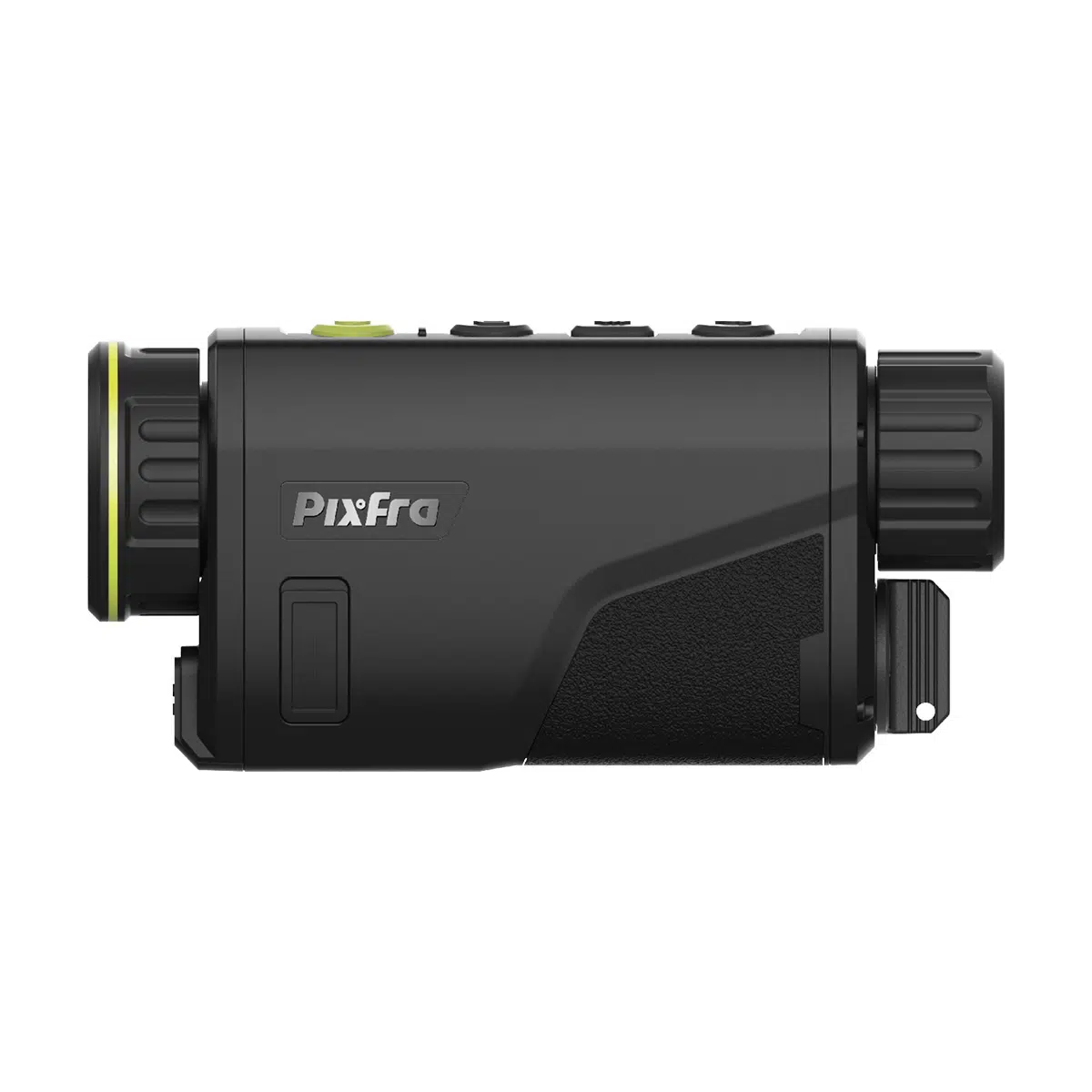

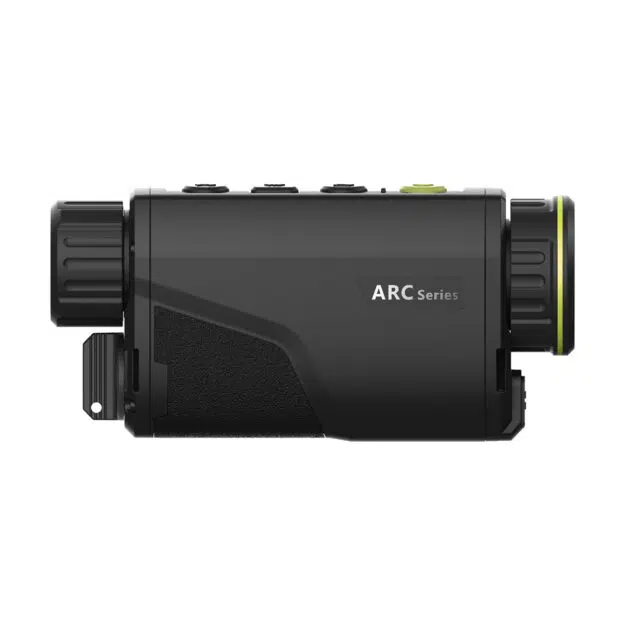

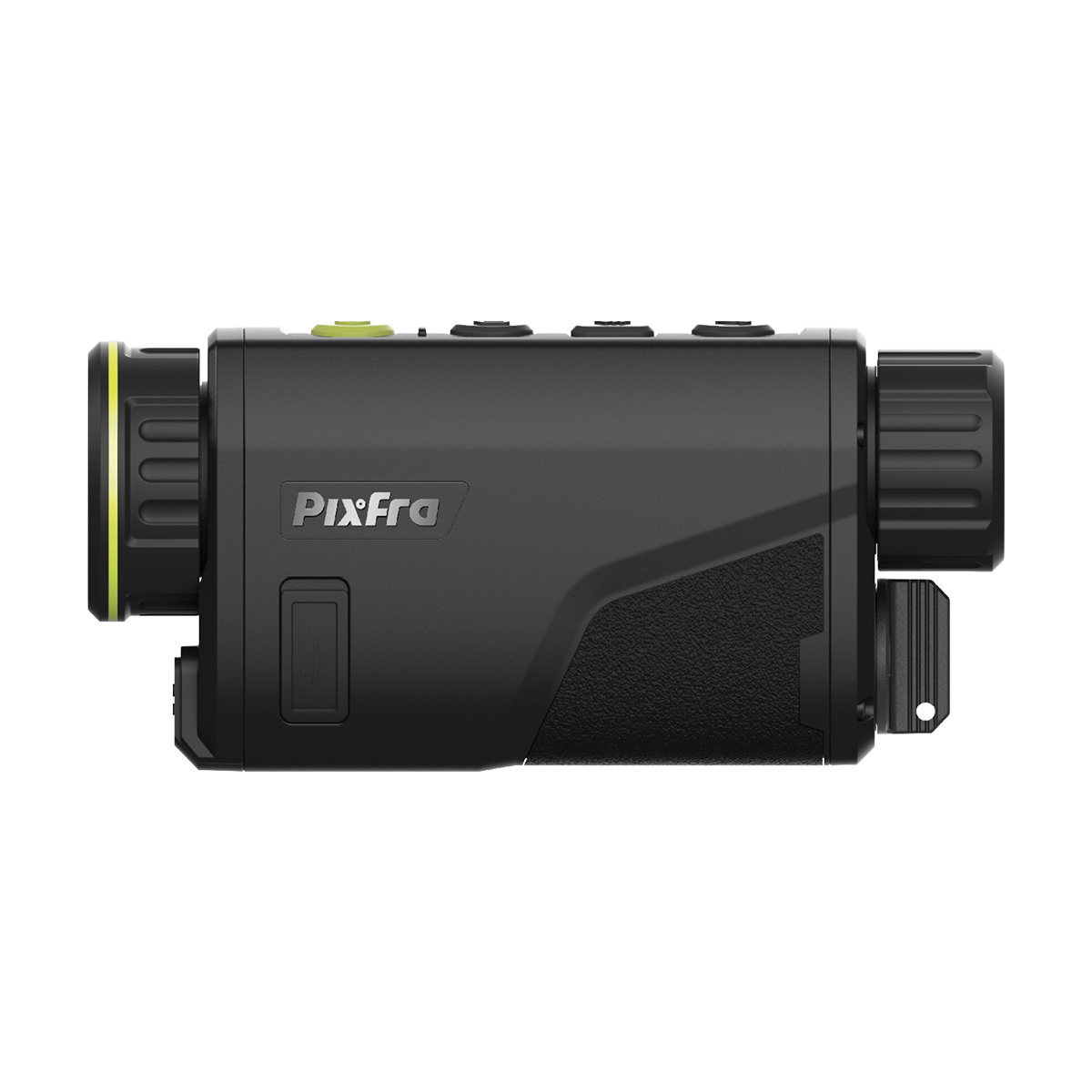

Pixfra Arc A613 Thermal Imaging Monocular
ยฃ1,141.63 (Ex. VAT)
Featuring a sensitive 640ร512, 12ยตm, <30mK NETD thermal sensor and a powerful 13mm f1.0 objective lens, the NEW Pixfra Arc A613 will achieve a detection range of up to 670m, spotting even the smallest heat signature at long-range and presenting a stunning thermal picture on to a full colour 1440ร1080 OLED display. The Arc A613 is packed with a range of features designed to enhance your observation experience, including a built-in video recorder, multiple colour palettes, and even screen sharing through the Pixfra app.
Videos
Specifications
| Thermal Sensor | 640ร512, 12ฮผm, <30mK NETD |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Spectral Range | 8ฮผm๏ฝ14ฮผm |
| Frame Rate | 50 Hz |
| Objective Lens | 13mm f1.0 |
| Field of View | H: 32.3ยฐ; V: 25.8ยฐ |
| Detection Range | 670m |
| Magnification | 0.875x |
| Colour Palettes | 6 (white hot/black hot /iron red/ alarm/amber/emerald) |
| Close Focus Distance | 0.5m |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Display Screen Dimensions | 0.41 inch, OLED |
| Screen Resolution | 1440 x 1080 |
| Diopter | -4D ~ +5D |
| Eye Relief | 15mm |
| Uniformity Correction | Auto; Manual |
| Storage | Built-in EMMC (32 GB) |
| Audio Recording | Yes |
| Hot Spot Trace | Yes |
| Wi-Fi | Yes |
| Power Supply | 5 V Type-C |
| Battery Type | 1 rechargeable 1850 Lithium battery |
| Battery Capacity | 3,200 mAh |
| Battery Operating Life | Up to 6.5h |
| Operating Temperature | โ30 ยฐC to +60 ยฐC (โ22 ยฐF to +140 ยฐF) |
| Storage Temperature | โ30 ยฐC to +70 ยฐC (โ22 ยฐF to +158 ยฐF) |
| Protection | IP67 |
| Product Dimensions | 151.7 mm ร 42.0 mm ร 74.4 mm (5.98โณ ร 1.65โณ ร 2.93โณ) (L ร W ร H) |
| Packaging Dimensions | 227 mm ร 150 mm ร 132 mm (8.93โณ ร 5.90โณ ร 5.19โณ) (L ร W ร H) |
| Net Weight | โค304 g (0.67 lb) (battery excluded) |
